K+K Time Interval Counter

The time interval counter NSZ was developed by K+K to calculate the time difference between two input signals. K+K DNSZ is the expanded cascadable version allowing measurement of several input signals in comparison with a common time reference. Up to 8 different signals are possible, the achieved resolution for the time differences is 50 ps.

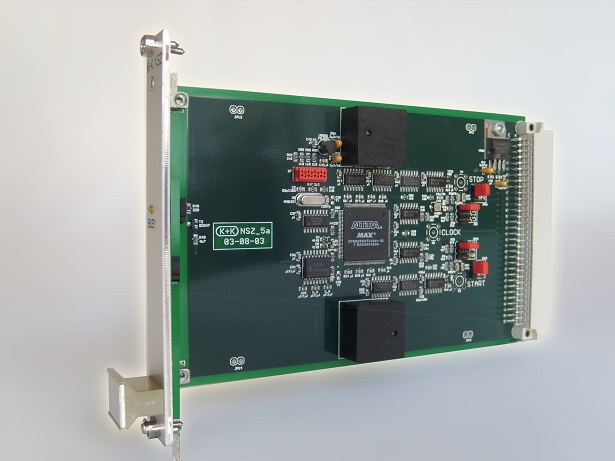

The devices are offered as single version (19" plug-in module) for special measurement applications (for example delay measurements) and as a complete system K+K ZFM.

K+K ZFM integrates more than one K+K DNSZ, optionally the corresponding number of K+K FXE channels and a controlling and protocolling unit. It can be used as time and frequency monitor for clock generators (typ. 1PPS / 10MHz).

Product features:

  • Measures time intervals of one or more pulse input signals in comparison to a common time reference
  • Supervising system for up to 8 channels
  • Expandable up to 32 channels by modules
  • Time resolution 50ps
  • PC connection via LAN, USB or RS232
  • Comes complete with controlling and visualization software
  • Specific customer adaption possible
