K+K FXE Phase + Frequency Meter

K+K PDC portable desktop case is the mobile version of the FXE precision measurement device for high resolution time, phase and frequency measures. The same FXE measurement cards as in the R19 assembly are used and can be swapped.

Two variants of the K+K PDC are available:

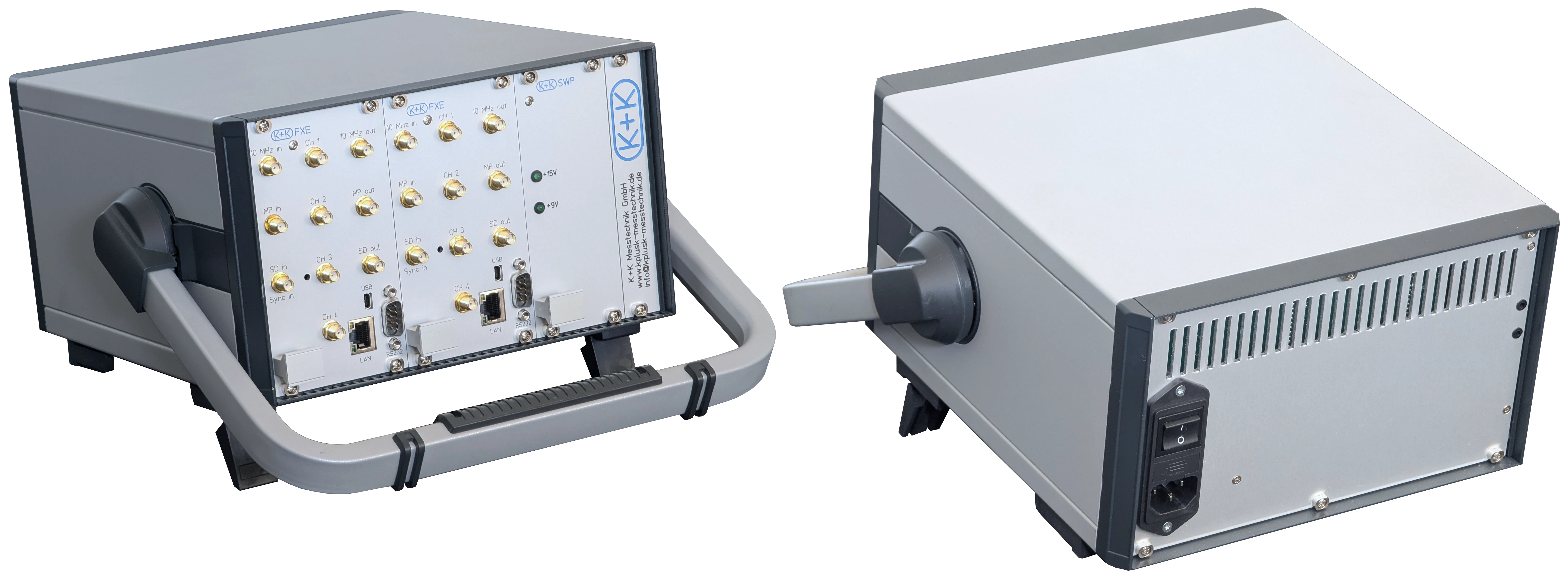

Variant A: The FXE and SWP are inserted from the front side

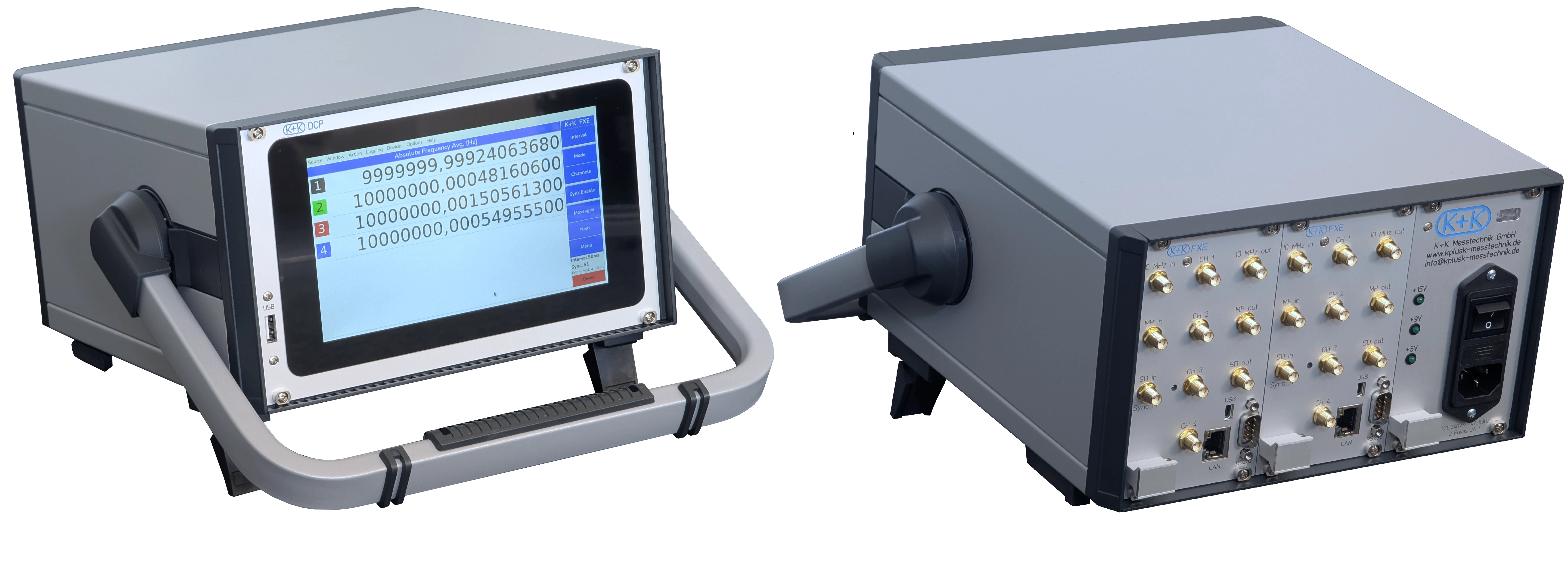

Variant B: With the DCU at the front side the FXE and SWP are inserted from the rear side.

Product specifications:

portable frequency and phase measurement with highest precision
Resolution single shot: Phase: 12 ps; Frequency: 10-11 @ 1s
Average resolution: Phase: 1 ps @ 1s; Frequency: 3*10-13 @ 1s
Reference clock: External 10 MHz clock (optional internal OCXO)
Input channels: 4 or 8 input signals, 4 kHz..130 MHz, min. 0dBm

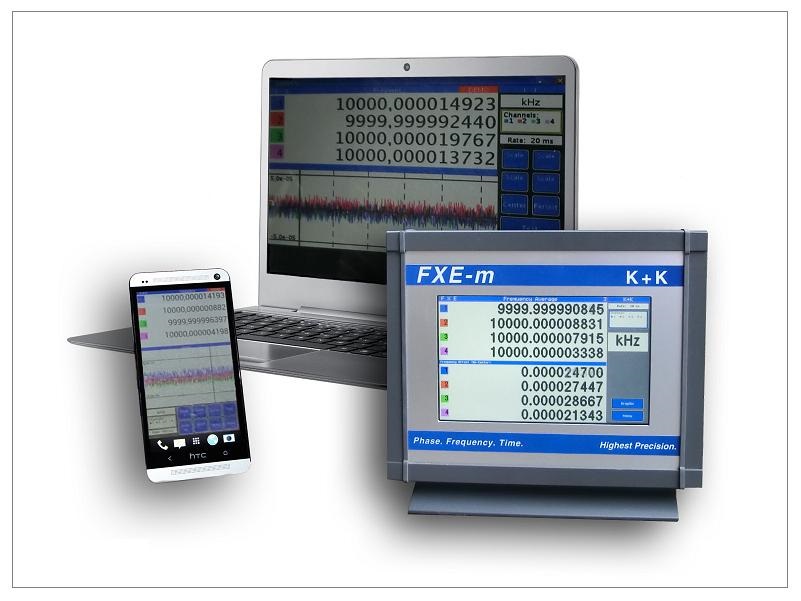

Optional: DCU touch screen unit
